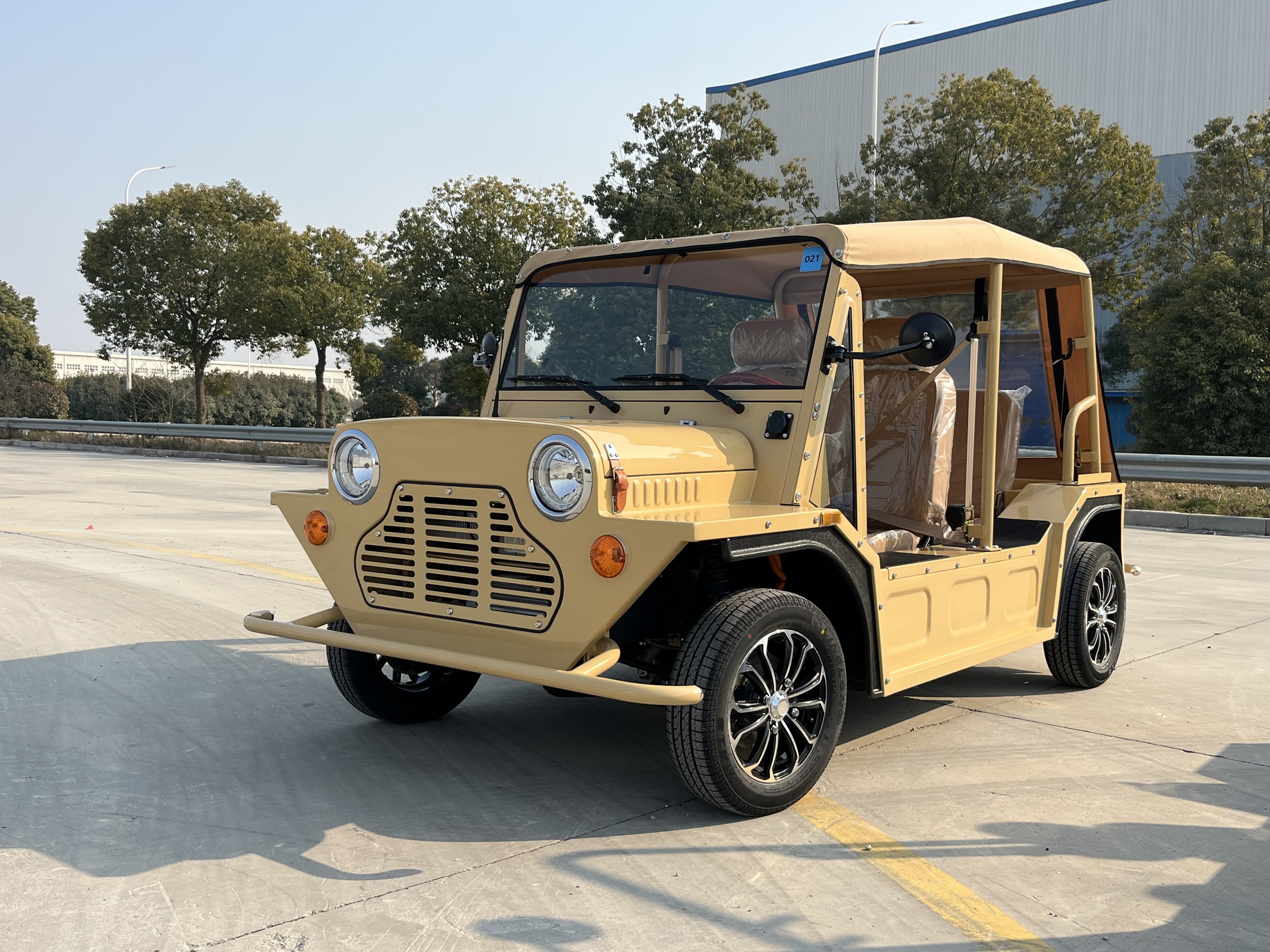

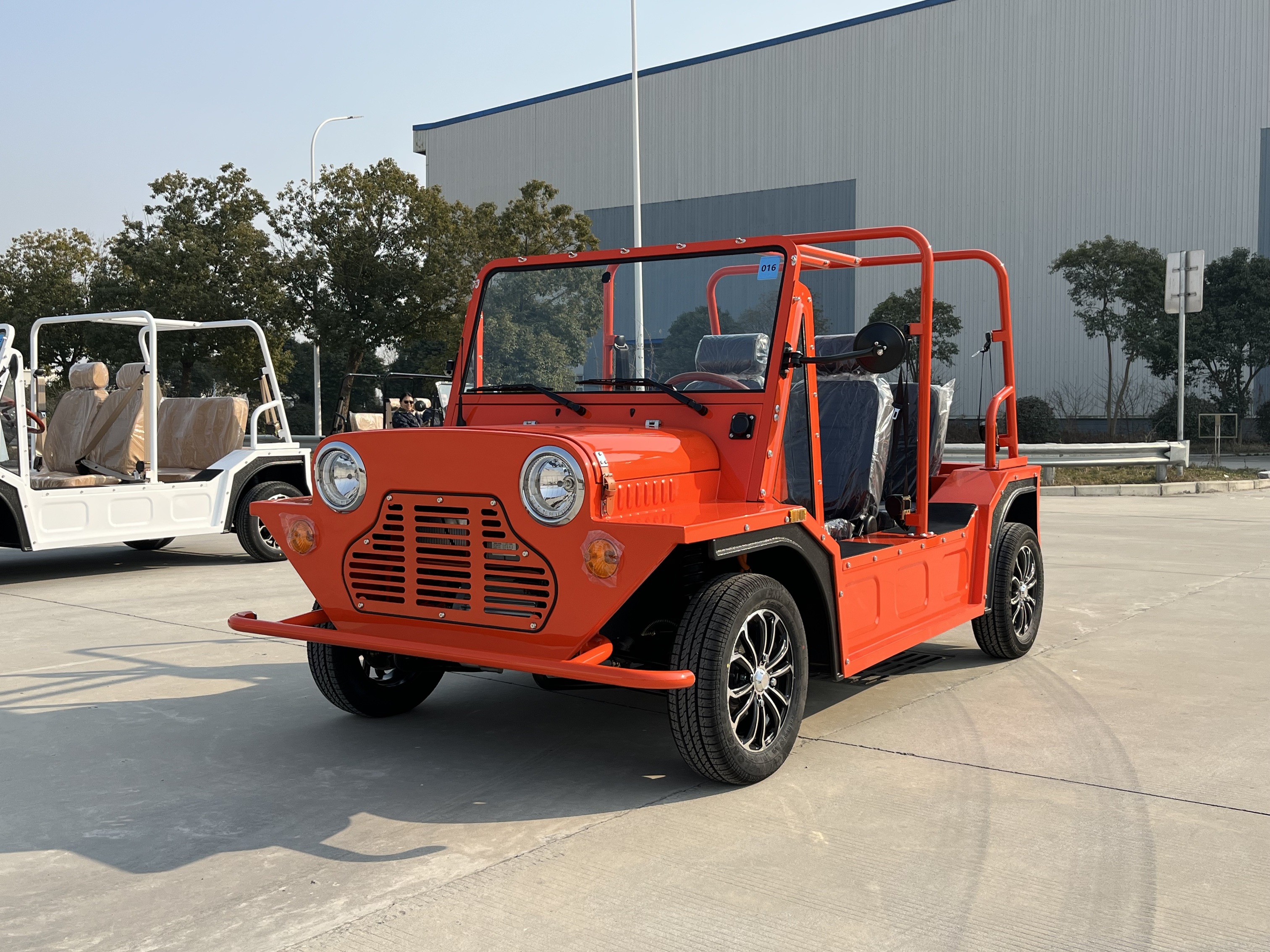

Lead-acid gel battery mini moke

Dimensions (LxWxH)

3290*1530*1500 mm

Wheelbase

2120 mm

Wheel track front/rear

1280mm/1280mm

Ground clearance

180mm

Max climbing ability

20°

Curb weight

430Kg

Full load

960Kg

Range

120Kms

Seats

4

Electric system and motor

Electric motor model

GLM 10 KW

Working voltage

96 V

Rated power

10 Kw

Peak power

22 Kw

Battery

12V*150AH*8 units PB Gel battery.

Max. speed

70 (Km/h)

Drive type

Front/Front

Chassis and other parameters

Steering system

Gear rack mechanical steering

Brake system

Front Disc/ Rear disc

Handbrake

Electronic handbrake

Suspension system (F/R)

(Front)double wishbone independent suspension, (rear) after trailing arm type independent suspension

Gearbox type

Two-speed automatic transmission, Transmission ratio: 6.7:1 (low speed);12:1(high speed).

Tire

155/65R13

Body color

White, black, orange, red, green and so on.
